NP-1
CIRCUIT BREAKERS
PUSH
BUTTON
CIRCUIT BREAKER

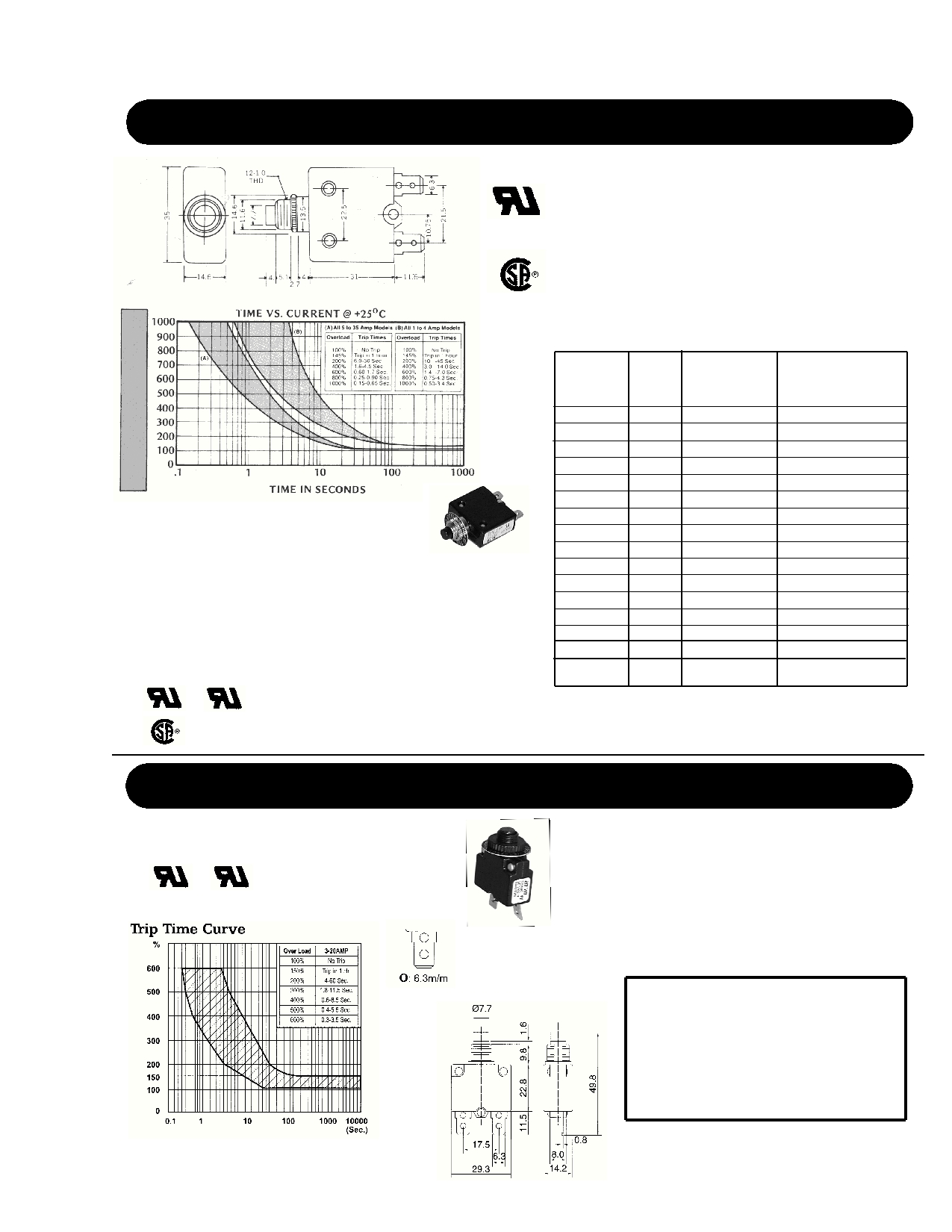

B7000 Series PUSH BUTTON
THERMAL CIRCUIT BREAKER
“B7000” Series breakers are UL 1077 Recognized as
Supplementary protectors, File E99607, and CSA
Certified as appliance Components protectors, File
LR62590.
B7000 Series are single pole, thermal circuit breakers
that features a recessed reset button which cannot be
manually pulled out to disconnect the circuit. When an
overload occurs and the breaker opens, it allows the
reset button to “pop out” for visible trip indication.
No. B7000
- Clear plas-
tic boot for Philmore No.
B7000 - Series Push
Button circuit breaker.
Protects reset button
from dust and moisture.
Part
No.
B7003
B7004
B7005
B7006
B7007
B7008
B7010
B7012
B7015
B7020
B7025
B7030
B7035
B7040
B7045
B7050
Amps
3
4
5
6
7
8
10
12
15
20
25
30
35
40
45
50
Maximum
Resistance in
ohms
.18
0.10
.026
0.15
.020
.020
.014
.010
.010
.006
0.005
.004
.004
.004
.002
.002
Trip time @ 200%
of rating
10-45 Seconds
10-45 Seconds
10-45 Seconds
10-45 Seconds
10-45 Seconds
10-45 Seconds
6 to 30 Seconds
6 to 30 Seconds
6 to 30 Seconds
6 to 30 Seconds
6 to 30 Seconds
6 to 30 Seconds
6 to 30 Seconds
6 to 30 Seconds
6 to 30 Seconds
6 to 30 Seconds
Endurance: 1,000 times at least
Calibration: Breaker will continuously carry 100% of rated load.
It may trip between 101% and 144% of rated load, but must
trip at 145% at 25. C.
Dielectric Strength: Over 1,500 volts RMS.
Max. Operating Voltages: 50VDC, 250VAC
Interrupt Capacity: 2,000 Amps, at 50 VDC(1-30 amp Models)
1,000 Amps, at 250VAC (1-30 amp Models)
NEW
NEW
Approvals
*
Approval: 3 -30 A 125/250 VAC
c
*
Approval: 5A, 10A, 15A, 20A125 VAC
MINIATURE PUSH BUTTON CIRCUIT BREAKER
Part No.
30-6003
30-6004
30-6005
30-6015
30-6018
30-6020
Amps
3
4
5
15
18
20
Specifications
Standard Rating: 3-20 AMPERE.
Input Power: 125 VAC / 250 VAC.
Dielectric Strength: 1500 VAC / 1 Minute.
Interrupt Capacity: 125 VAC x 1000 A, 250 VAC x 1000 A.
Insulation Resistance: > 100 Meg Ohm.
Calibration: 25.C-105.C of rated Current-Continuously Carried.
25.C-Between 101% to 145%-May Trip or not.
25.C-150% of Rated current-Trip Within 1 Hour.
25.C-200% of Rated Current-Trip Within 1 Minute.
Contact Endurance: 125 VAC x 1505 of rated currrent-500 Cycles.
Reset: Manual push reset/auto reset.
Maximum Resistance
in ohms
0.120
0.120
0.100
0.008
0.007
0.007
Approvals
*
Approval: 3 -15 A 125/250 VAC
c
TERMINAL
