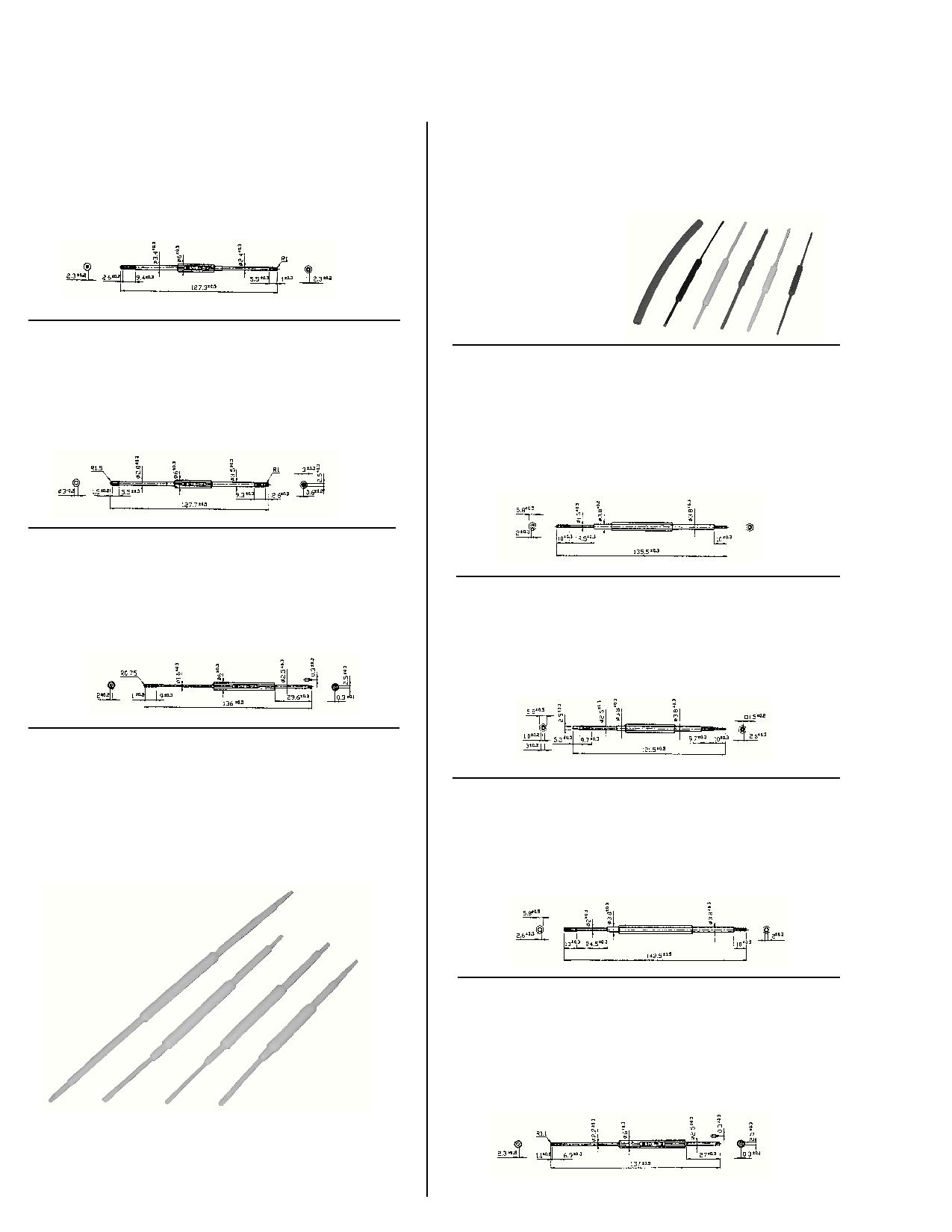

TOOLS
164
ALIGNMENT TOOLS
SPECIAL HEX-TIP TOOL
Hex: 0.10
On one end, flat tip (0.025 thick x 0.10 wide) is followed by a
0.10 hex. The opposite end is an undercut 0.10 hex. Overall
length, 5. Replaces type 8606.
No. 63-8606
DOUBLE END HEX TOOL
Hex: .125
One end is an under cut .125 and other is a .125 hex preceeded
by a flat (.025 thick x .10 wide) blade. Entire tool is molded
Nylon. Replaces type 9091.
No. 63-9091
SCREWDRIVER-HEX COMBINATION TOOL
Hex: .078
One end is an undercut 0.078 hex tip and other is a screwdriver
style tip that is 0.10 in diameter and tapers to 0.015 thick. Overall
length: 5-5/16, molded Nylon. Replaces type 9304.
No. 63-9304
SCREWDRIVER-HEX COMBINATION TOOL
Hex: .092
One end is an undercut 0.092 hex tip and other is a screwdriver
style tip that is 0.10 in diameter and tapers to 0.015 thick. Overall
length: 5-5/16, molded Nylon. Replaces type 8282.
No. 63-8282
TELEVISION ALIGNMENT TOOL SET
Kit contains the five most commonly needed tools for television
service. Also included is an extender that may be used as an
extension handle when a longer reach tool is needed. Kit is sup-
plied in a segmented pouch to keep tools together.
Contains:
63-9300 63-8606
63-8282 63-9091
63-9304 Extender
No. 63-8454
SQUARE and HEX ALIGNMENT TOOL
Square: .060 Hex: 0.10 & Blade
A double-ended, molded nylon tool: overall length is 4-3/4 One
end is a square .060 tip with protruding blade from a 0.10 hex.
The other end is a flat (.039 thick) blade which is followed by an
undercut .10 hex. Atool frequently needed in color copier mainte-
nance
No. 63-9442
DOUBLE ENDED HEX TOOL
Hex: 0.078
Undercut .078 hex on one end and on the other the hex is
stopped with a larger diameter shaft. Overall length is 5.33.
Molded Nylon.
No. 63-9301
DOUBLE ENDED HEX TOOL
Hex: 0.10 & .087
A dual ended tool with an undercut 0.10 hex on one end and a
standard .087 (for 2.2mm cores) hex on the other. Overall length
is 5.6. Molded Nylon.
No. 63-8603
TECHS ALIGNMENT TOOL KIT
A general purpose kit containing four tools with a variety of need-
ed tips. Includes tools for most common ferrite core adjustments
used in todays circuits. Supplied in a plastic pouch. Contains tool
Nos.: 63-8603, 63-9301, 63-9442, and 63-9297.
No. 63-8420
