PANEL LAMPS & LED’s
192

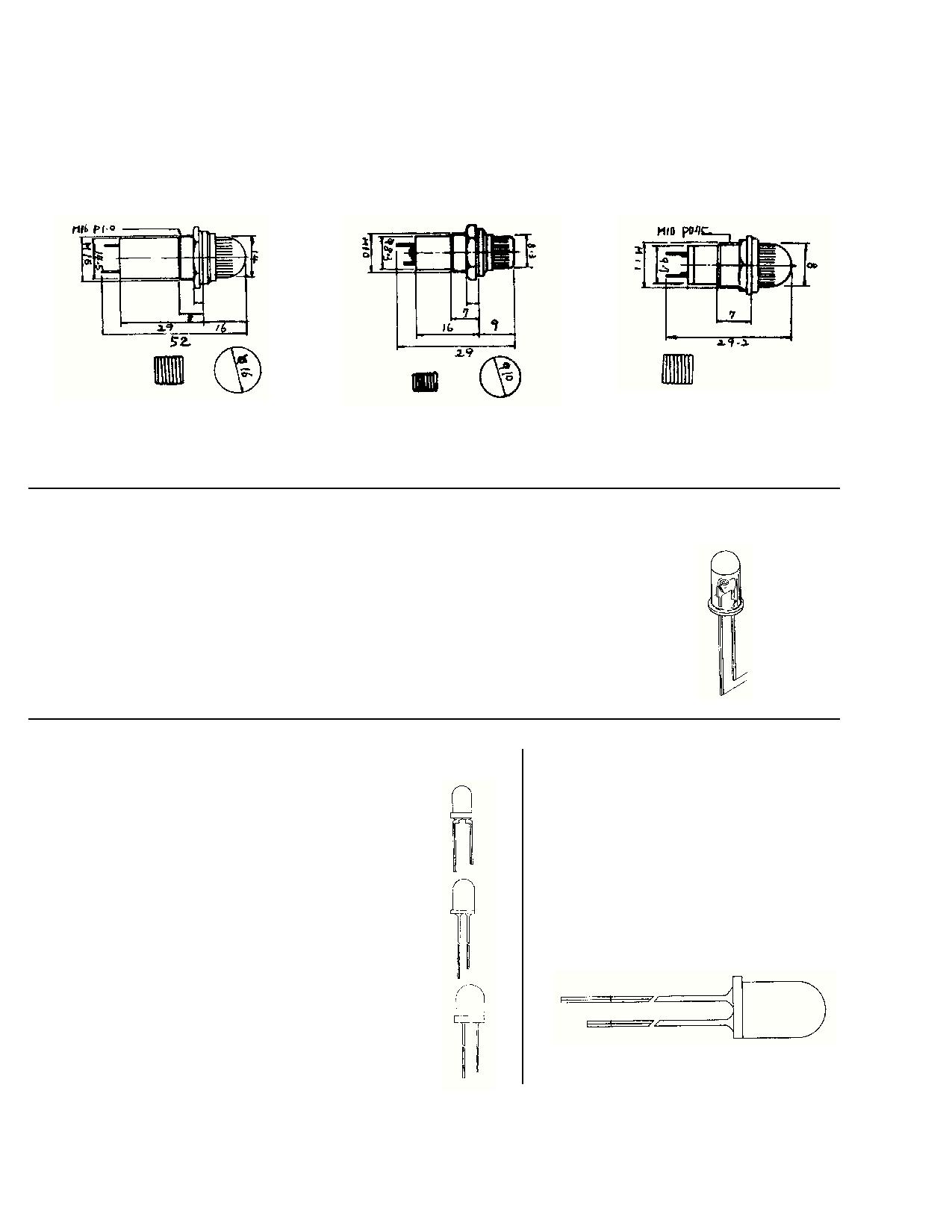

Miniature Screw Base Lamp
Holder
These lamp holders can house a standard miniature
screw based lamp. They have a dome lens and mount
into a 16 mm mounting hole.
Midget Screw Base Lamp
Holder-Flat Lens
Lamp holders for midget screw based lamps. They
have a 9 mm high flat lens and mount into a 10 mm
hole.
No.
11-512
Red
No.
11-513
Orange
No.
11-515
Green
Midget Screw Base
Lamp Holder-Dome Lens
Lamp holders for midget screw based lamps.
They have a 9 mm high dome lens and mount
into a 10 mm hole.
No.
11-552
Red
No.
11-553
Orange
No.
11-555
Green
No.
11-522
Red
No.
11-523
Orange
No.
11-525
Green
The LED ( light emitting diode) offered in this section are without mounting hardware, or discrete devices. The
LED consists of four components: a lead frame, a dice (or LED chip), and a fine wire bond which is encapsulated in
an epoxy base. (see Below) Depending on the chip used, the observer will see a monochromatic red, green,
orange, yellow or blue light. There are no moving parts, so these devices are considered a “solid state device”. The
LED’s operate on from 1.7V-2.5V if you need the lamp to operate at a higher voltage a current limiting resistor is
needed. The value of the resistor will vary depending upon the desired voltage and whether it is AC or DC volts.
Each color of LED works at a different operating current which will change the value of the resistor.
LED’s
3 mm (T-1) Round LED’s
Part Foreward Max ForwardTypical LED
Viewing
Number Current (If) ma Voltage Voltage Color
Angle
11-602
20 ma
2.0V
1.7V Red
35
o
11-604
20 ma
2.6V
2.1V Ye llow
35
o
11-605
20 ma
2.6V
2.2V Green
35
o
5 mm (T-1 3/4) Round LED’s
Part Foreward Max ForwardTypical LED
Viewing
Number Current (If) ma Voltage Voltage Color
Angle
11-611
20 ma
2.0V
1.7V Red
35
o
11-612
20 ma
2.6V
2.2V Bright Red 35
o
11-614
20 ma
2.6V
2.1V Ye llow
35
o
11-615
20 ma
2.6V
2.2V Green
35
o
12 mm Round LED’s
Part Foreward Max ForwardTypical LED
Viewing
Number Current (If) ma Voltage Voltage Color
Angle
11-662
20 ma
2.6V
2.2V Bright Red 50
o
11-663
20 ma
2.6V
2.0V Orange
50
o
11-664
20 ma
2.6V
2.1V Ye llow
50
o
11-665
20 ma
2.6V
2.2V Green
50
o
Blinking LED’s
All of these devices operate @ 25 ma, 3 - 10V DC and
are typically driven by TTL or C-MOS circuits with no
external circuit needed.
Luminous
Intensity
12.0
35.0
40.0
Viewing
Angle
45
o
45
o
45
o
LED
Color
Bright Red
Yellow
Green
Pulse Rate
(VDD=5V)Hz
2.4V
2.4V
2.4V
Part
Number
1
1-672
11-674
11-675
5mm (T-1 3/4)
