SwitchCraft^®

TINI Q-G MINIATURE CONNECTORS

U.S. Patent No. 4,316,647, 4,361,375

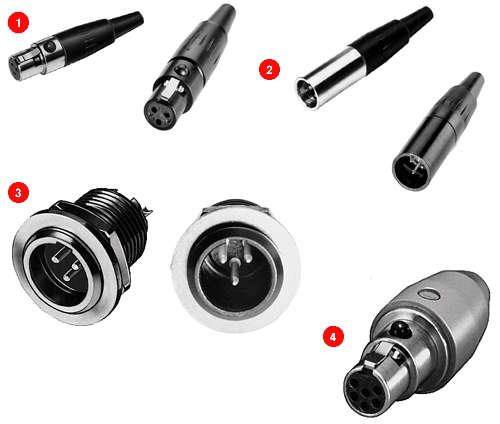

• 1. TA(*)F, TA(*)FL AND TA(*)FB CORD PLUG
• 2. TA(*)M, TA(*)MB, TA(*)ML AND TA(*)MLB CORD PLUG
• 3. TB(*)M AND TB(*)MB RECEPTACLE
• 4. TLP(*) LOOPING PLUG

B(*)F Receptacle

Panel-mount female receptacle. Mounts with spanner nut from front of panels up to .4375 inches (11.11 mm) thick. Slot in threaded part of housing permits non-turn mounting. Requires 1.25-inch (31.75 mm) diameter minimum mounting hole. Spanner nut is die-cast zinc with satin nickel finish (Series B*F) or black finish (Series B*FB).

TA(*)F, TA(*)FL AND TA(*)FB CORD PLUG

TA(*)M, TA(*)MB, TA(*)ML AND TA(*)MLB CORD PLUG

TB(*)M AND TB(*)MB RECEPTACLE

Male receptacle for chassis/panel mounting. Specially designed flange permits close (front) mount on crowded panels. Mounting hardware supplied.

Part Number	Insert Pins	Part Number	Insert Pins
TB3M	3	TB5M	5
TA3MB*	3	TB5MB*	5
TB4M	4	?TB6M	6
TB4MB*	4

* B indicates black housing

TLP(*) LOOPING PLUG

Looping plug is designed for circuit testing. Other inserts and wiring patterns are possible; contact Switchcraft.

Part Number	Insert Pins
?TLP4	3
?TLP6	6

? Available on special order only; contact Switchcraft for price and delivery.
* Number of insert contacts or pins must be specified to complete Part Number.
