Distributors for
WAVETEK Voltage/Temperature/Converter/Logic Probes

WaveTek Logo


Voltage/Temperature Converter and Logic Probes



Voltage/Temperature Converter

TC253 Voltage/Temperature Converter

The TC253 universal temperature converter allows any multimeter to read temperatures from -50 degrees Celsius to 100 degrees Celsius (-32.4 degrees Fahrenheit to 1652 degrees Fahrenheit), using an industry standard Type K thermo-couple. The unit is switchable for degrees Fahrenheit or degrees Celsius. (Purchase probes separately).








Voltage/Temperature Converter and Logic Probes

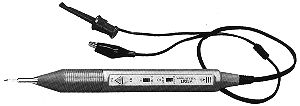

LP1OA, LP25A Logic Probes

Wavetek pen-size logic probes are ideal for troubleshooting and analyzing digital logic circuits. Roth probes are powered by the external circuit under test. Each probe has a power zip cord with a red minihook clip to make power connection to the external circuit easy - even to an IC lead. A black alligator clip allows a secure connection to circuit ground.

Logic Probe LP1OA. The LP1OA detects pulses as narrow as 30ns at frequencies up to 17MHz. Switch the probe between TTL, or CMOS logic, depending upon the application. Bright, triangular LEDs indicate the measured logic state, high versus low. A pulse memory switch engages internal pulse stretch circuitry to capture single occurring pulses for the user to see via an LED that a high-speed, one-shot pulse has occurred.

Logic Probe LP25A. The LP25A measures TTL, DTL, RTL, CMOS, NMOS, and MOS logic levels at speeds up to 25MHz and detects pulses as low as 30ns duration. The probe switches between TTL or CMOS logic. Bright, triangular LEDs indicate the measured logic state, high versus low. Pulse memory captures fast occurring pulses. This probe has a unique LED/tone indication that makes it easy to discern what the input is doing, visually and audibly.



© 1997 Wavetek
