Distributors for
POTTER & BRUMFIELD

CS and SDAS-01
VOLTAGE/CURRENT SENSORS


A division of:
potter brumfield electronic product potter & brumfield Products p&b relay p&b relays CS and SDAS-01 Voltage and Current Sensors
Siemens Electromechanical Components, Inc.




VOLTAGE/
CURRENT
SENSORS
potter brumfield electronic product potter & brumfield Products p&b relay p&b relays CS and SDAS-01 Voltage and Current Sensors Product pic
potter brumfield electronic product potter & brumfield Products p&b relay p&b relays CS and SDAS-01 Voltage and Current Sensors Product Pic
Series
CS
More Specs/Data

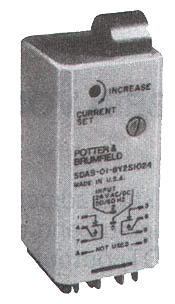

SDAS-01
More Specs/Data
Features Voltage sensor.

Functions as either an overvoltage or an undervoltage sensor.

Choice of fixed pick-up and knob adjustable drop-out or knob adjustable pick-up and drop-out.
Current sensor.

AC current sensor is offered in both overcurrent and undercurrent types.

Inductive coupling to power line.

Potentiometer adjustable.

Internal relay available with one or two poles.
Approx
Dimensions
2.41" x 1.78" x 2.94"h

8 oz.
1.53" x 1.41" x 2.72"h

3.2 oz.
Contact/Switch
Arrangement
2 Form C
1 Form C,
2 Form C
Contact/Switch
Rating
10A @ 28VDC or 120VAC
(1C) 5A @ 28VDC or
2.5A @ 120VAC

(2C) 2A @ 28VDC or
1A @ 120VAC
Monitor/Sense
Range or
Threshold
16 to 140VAC or VDC in
various ranges
1.5 to 15A AC
Temperature
Range
-10C to +55C
-25C to +70C
Terminals Octal Plug
Quick connect,
PC board
Mounting
Options
Socket
Socket,
Chassis mount,
PC board
Sockets Screw terminal
Screw terminal,
Solder terminal,
PC terminal,
Quick connect terminal



© 1997 Potter & Brumfield Products Division,
Siemens Electromechanical Components Inc.
